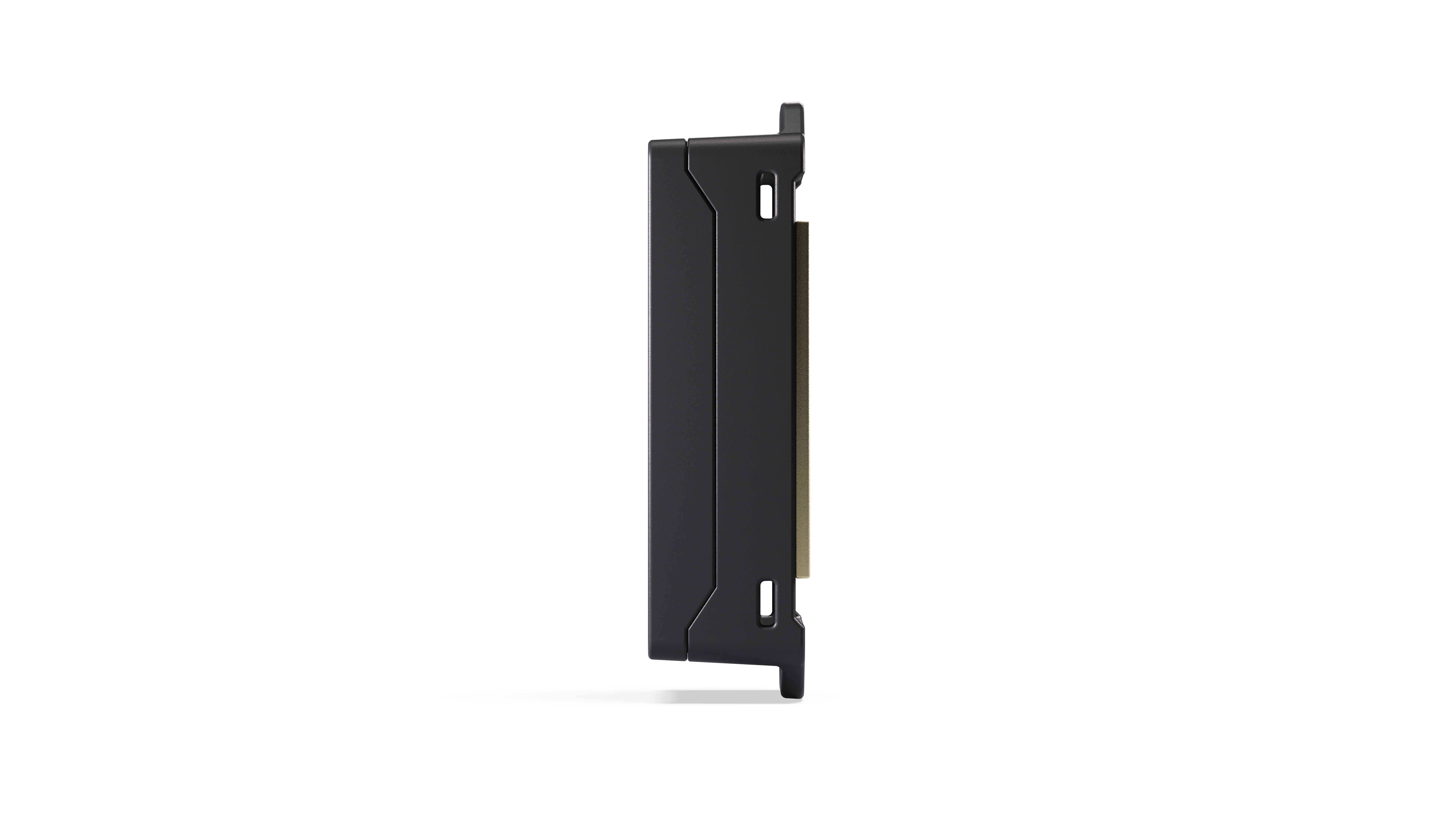

SNT 1.2
Rugged tracking, simplified.
SNT 1.2 is a rugged, self-powered asset tracker built for fast installs and years-long performance on equipment, trailers, and containers. Designed for punishing environments—from frozen yards to salt-spray docks—it delivers precise GNSS, LTE-M/NB-IoT, and intelligent motion/idle/theft profiles in a compact, IP69K-sealed form factor. With secure OTA updates and zero wiring, SNT 1.2 keeps your fleet visible without upkeep.
Features
-
ADAPTABLE TRACKING MODES
Periodic stationary updates, motion-based reporting, and a real-time stolen-asset detection mode for faster recovery.
-
10+ YEARS OF BATTERY LIFE
Engineered for a decade of field life under normal usage, eliminating maintenance cycles and replacement runs.
-
IP69K-SEALED, JOBSITE-TOUGH
Rugged housing withstands pressure-wash, dust, debris, and impact—built to survive wherever your assets sit or move.
-
INSTALLER-FRIENDLY SETUP
Tri-color LED for installer status, single push-button activation, configurable reset/power, and flexible mounting: adhesive, screws, zip ties, or magnets.
-
OTA CONFIG + FIRMWARE
Update configuration and firmware over the air to apply fleet-wide changes without rolling a truck.
-
LTE-M / NB-IoT + GPS + SECURE CLOUD
3GPP-approved radios with GNSS reporting and secure cloud connectivity for reliable global visibility.
Specifications
SOFTWARE & PLATFORM SUPPORT
- →Install Application: Casper
- →Data Ownership: DeviceShare
- →API Documentation: Available
- →Update Support: FOTA – Product & Modem Firmware/Configuration Updates
FEATURES & PERFORMANCE
- →Periodic Reporting
Configurable from every hour to every 60 days - →Motion Reporting
Motion Start, In-Motion, Motion Stop - →Stolen Asset Mode
Auto via geofence exit; Manual via SMS command - →Geofencing
Auto-triggered Stolen Asset Mode; radius 100–10,000m - →Working Hours
Disables Auto Stolen Asset Mode during defined hours - →On-Demand Reporting
Location report, config/sw update, reset, stolen asset mode via SMS - →Offline Memory
Stores up to 30 reports - →Battery Life
7 years or 4,000 reports (whichever comes first)
CONNECTIVITY & POSITIONING
- →Cellular: 4G LTE Cat M1
- →Bands: 2, 4, 12, 13, 14, 25, 26, 66
- →GNSS: GPS, GNSS, AGPS
- →Accuracy: 2.5m
- →Hot Start: ~1s
- →Update Rate: 1Hz
- →Tracking Sensitivity: –155 dBm
- →Acquisition Sensitivity: –147 dBm
- →Data Communication: MQTT, HTTPS, UDP/IP, JSON, SMS
- →Antennas: Dual Internal GPS & Cellular
- →SIM: Internal, Multi-carrier North America
CERTIFICATIONS & COMPLIANCE
- →Carrier Certifications: AT&T 4G LTE, PTCRB
- →Regulatory: FCC / IC, CE, RoHS
- →Transport: UN 38.3 (battery), SAE J1455 shock/vibration
- →Ingress Protection: IP69K & Class 1 Div 2
POWER & ENVIRONMENTAL
- →Power Consumption: <1mA (sleep), 20mA (reporting)
- →Internal Battery: 4800 mAh (Primary)
- →Operating Temperature: –40°C to +85°C
- →Enclosure: IP69K rated (dust, pressure wash levels 1 & 2, extreme weather)
- →Shock & Vibration: SAE J1455 compliant
FORM FACTOR
- →Dimensions: 127mm x 63mm x 34mm
- →Weight: 277g
- →Mounting: Magnet integrated, zip-tie & screw holes, adhesive-compatible housing
INTERFACES
- →LEDs: 1 tri-color (device status & activation)
- →Button: Configurable for reset, power on/off, or inactive
- →IMU: 3-Axis Accelerometer
